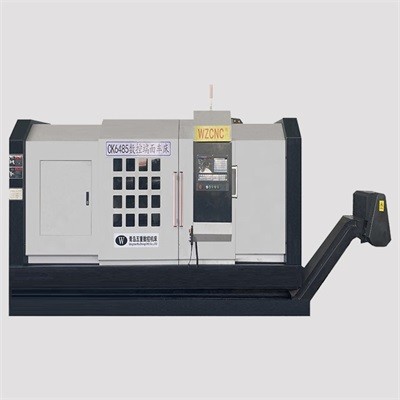

CK6485数控端面车床

最大回传直径Maximum retransmission diameter

mm

Ф800

Ф1400

Ф1600

Ф2000

Ф2500

Ф2700

Ф3000

床鞍上最大车削直径Maximum turning diameter on the bed saddle

mm

Ф500

Ф1000

Ф1200

Ф1500

Ф2000

Ф2200

Ф2500

最大工件长度maximum length of workpiece

mm

1000

1000

1000

1000

1000

1000

1000

卡盘直径diameter of chuck

mm

Ф200

Ф1000

Ф1250

Ф1600

Ф2000

Ф2200

Ф2500

卡盘连接方式Card plate connection mode

过渡盘

Transitional plate

过渡盘

Transitional plate

过渡盘

Transitional plate

短轴柱

brachyprism

短轴柱

brachyprism

短轴柱

brachyprism

短轴柱

brachyprism

主轴转速

main shaft speed

R/min

10-200

10-20

10-200

4-120

4-120

4-120

4-120

主电机功率Power of main motor

kw

20

15

18.5

22

30

30

37

主轴最大纽矩

Maximum tenuous moment of spindle

N.M

3000

5000

7000

10000

15000

15000

15000

移动距离

displacement distance

mm

620/1000

700/1000

800/1000

1000/1000

1250/1000

1350/1000

1500/1000

快速移动距离

Fast moving distance

m/min

3

3

3

3

3

3

3

伺服电机扭矩

Torque of servo motor

N.M

12/16

12/16

12/16

16/27

16/27

16/27

16/27

伺服电机功率

Servo motor power

KM

3.4/4.0

3.4/4.0

3.4/4.0

4.0/5.5

4.0/5.5

4.0/5.5

4.0/5.5

刀位数

The knife number

4

4

4

4

4

4

4

刀具尺寸

tool dimension

mm

32x32

32x32

32x32

40x40

40x40

40x40

40x40

电源

Power source

KVA

25

30

40

50

70

80

80

体积

volume

mm

4000x1800x1800

4000x2200x2000

4000x2500x2200

4000x3000x3000

4000x3500x3300

4000x3700x3000

4000x4000x3000
